NSScanner

Written by Nate Cook

Strings are a ubiquitous and diverse part of our computing lives. They comprise emails and essays, poems and novels—and indeed, every article on nshipster.com, the configuration files that shape the site, and the code that builds it.

Being able to pull apart strings and extract particular bits of data is therefore a powerful skill, one that we use over and over building apps and shaping our tools. Cocoa provides a powerful set of tools to handle string processing. In particular:

  • string.componentsSeparatedByCharactersInSet / string.componentsSeparatedByString: Great for splitting a string into constituent pieces. Not so great at anything else.

  • NSRegularExpression: Powerful for validating and extracting string data from an expected format. Cumbersome when dealing with complex serial input and finicky for parsing numeric values.

  • NSDataDetector: Perfect for detecting and extracting dates, addresses, links, and more. Limited to its predefined types.

  • NSScanner: Highly configurable and designed for scanning string and numeric values from loosely demarcated strings.

This week’s article focuses on the last of these, NSScanner. Read on to learn about its flexibility and power.


Among Cocoa’s tools, NSScanner serves as a wrapper around a string, scanning through its contents to efficiently retrieve substrings and numeric values. It offers several properties that modify an NSScanner instance’s behavior:

  • caseSensitive Bool: Whether to pay attention to the upper- or lower-case while scanning. Note that this property only applies to the string-matching methods scanString:intoString: and scanUpToString:intoString:—character sets scanning is always case-sensitive.
  • charactersToBeSkipped NSCharacterSet: The characters to skip over on the way to finding a match for the requested value type.
  • scanLocation Int: The current position of the scanner in its string. Scanning can be rewound or restarted by setting this property.
  • locale NSLocale: The locale that the scanner should use when parsing numeric values (see below).

An NSScanner instance has two additional read-only properties: string, which gives you back the string the scanner is scanning; and atEnd, which is true if scanLocation is at the end of the string.

Note: NSScanner is actually the abstract superclass of a private cluster of scanner implementation classes. Even though you’re calling alloc and init on NSScanner, you’ll actually receive one of these subclasses, such as NSConcreteScanner. No need to fret over this.

Extracting Substrings and Numeric Values

The raison d'être of NSScanner is to pull substrings and numeric values from a larger string. It has fifteen methods to do this, all of which follow the same basic pattern. Each method takes a reference to an output variable as a parameter and returns a boolean value indicating success or failure of the scan:

let whitespaceAndPunctuationSet = NSMutableCharacterSet.whitespaceAndNewlineCharacterSet()
whitespaceAndPunctuationSet.formUnionWithCharacterSet(NSCharacterSet.punctuationCharacterSet())

let stringScanner = NSScanner(string: "John & Paul & Ringo & George.")
stringScanner.charactersToBeSkipped = whitespaceAndPunctuationSet

// using the latest Swift 1.2 beta 2 syntax:
var name: NSString?
while stringScanner.scanUpToCharactersFromSet(whitespaceAndPunctuationSet, intoString: &name)
{
    println(name)
}
// John
// Paul
// Ringo
// George
NSMutableCharacterSet *whitespaceAndPunctuationSet = [NSMutableCharacterSet punctuationCharacterSet];
[whitespaceAndPunctuationSet formUnionWithCharacterSet:[NSCharacterSet whitespaceAndNewlineCharacterSet]];

NSScanner *stringScanner = [[NSScanner alloc] initWithString:@"John & Paul & Ringo & George."];
stringScanner.charactersToBeSkipped = whitespaceAndPunctuationSet;

NSString *name;
while ([stringScanner scanUpToCharactersFromSet:whitespaceAndPunctuationSet intoString:&name]) {
    NSLog(@"%@", name);
}
// John
// Paul
// Ringo
// George

The NSScanner API has methods for two use-cases: scanning for strings generally, or for numeric types specifically.

1) String Scanners

scanString:intoString: / scanCharactersFromSet:intoString:
Scans to match the string parameter or characters in the NSCharacterSet parameter, respectively. The intoString parameter will return containing the scanned string, if found. These methods are often used to advance the scanner’s location—pass nil for the intoString parameter to ignore the output.
scanUpToString:intoString: / scanUpToCharactersFromSet:intoString:
Scans characters into a string until finding the string parameter or characters in the NSCharacterSet parameter, respectively. The intoString parameter will return containing the scanned string, if any was found. If the given string or character set are not found, the result will be the entire rest of the scanner’s string.

2) Numeric Scanners

scanDouble: / scanFloat: / scanDecimal:
Scans a floating-point value from the scanner’s string and returns the value in the referenced Double, Float, or NSDecimal instance, if found.
scanInteger: / scanInt: / scanLongLong: / scanUnsignedLongLong:
Scans an integer value from the scanner’s string and returns the value in the referenced Int, Int32, Int64, or UInt64 instance, if found.
scanHexDouble: / scanHexFloat:
Scans a hexadecimal floating-point value from the scanner’s string and returns the value in the referenced Double or Float instance, if found. To scan properly, the floating-point value must have a 0x or 0X prefix.
scanHexInt: / scanHexLongLong:
Scans a hexadecimal integer value from the scanner’s string and returns the value in the referenced UInt32 or UInt64 instance, if found. The value may have a 0x or 0X prefix, but it is not required.

localizedScannerWithString / locale

Because it is a part of Cocoa, NSScanner has built-in localization support (of course). An NSScanner instance can work with either the user’s locale when created via + localizedScannerWithString:, or a specific locale after setting its locale property. In particular, the separator for floating-point values will be correctly interpreted based on the given locale:

var price = 0.0
let gasPriceScanner = NSScanner(string: "2.09 per gallon")
gasPriceScanner.scanDouble(&price)
// 2.09

// use a german locale instead of the default
let benzinPriceScanner = NSScanner(string: "1,38 pro Liter")
benzinPriceScanner.locale = NSLocale(localeIdentifier: "de-DE")
benzinPriceScanner.scanDouble(&price)
// 1.38
double price;
NSScanner *gasPriceScanner = [[NSScanner alloc] initWithString:@"2.09 per gallon"];
[gasPriceScanner scanDouble:&price];
// 2.09

// use a german locale instead of the default
NSScanner *benzinPriceScanner = [[NSScanner alloc] initWithString:@"1,38 pro Liter"];
[benzinPriceScanner setLocale:[NSLocale localeWithLocaleIdentifier:@"de-DE"]];
[benzinPriceScanner scanDouble:&price];
// 1.38

Example: Parsing SVG Path Data

To take NSScanner out for a spin, we’ll look at parsing the path data from an SVG path. SVG path data are stored as a string of instructions for drawing the path, where “M” indicates a “move-to” step, “L” stands for “line-to”, and “C” stands for a curve. Uppercase instructions are followed by points in absolute coordinates; lowercase instructions are followed by coordinates relative to the last point in the path.

Here’s an SVG path I happen to have lying around (and a point-offsetting helper we’ll use later):

var svgPathData = "M28.2,971.4c-10,0.5-19.1,13.3-28.2,2.1c0,15.1,23.7,30.5,39.8,16.3c16,14.1,39.8-1.3,39.8-16.3c-12.5,15.4-25-14.4-39.8,4.5C35.8,972.7,31.9,971.2,28.2,971.4z"

extension CGPoint {
    func offset(p: CGPoint) -> CGPoint {
        return CGPoint(x: x + p.x, y: y + p.y)
    }
}
static NSString *const svgPathData = @"M28.2,971.4c-10,0.5-19.1,13.3-28.2,2.1c0,15.1,23.7,30.5,39.8,16.3c16,14.1,39.8-1.3,39.8-16.3c-12.5,15.4-25-14.4-39.8,4.5C35.8,972.7,31.9,971.2,28.2,971.4z";

CGPoint offsetPoint(CGPoint p1, CGPoint p2) {
    return CGPointMake(p1.x + p2.x, p1.y + p2.y);
}

Note that the point data are fairly irregular. Sometimes the x and y values of a point are separated by a comma, sometimes not, and likewise with points themselves. Parsing these data with regular expressions could turn into a mess pretty quickly, but with NSScanner the code is clear and straightforward.

We’ll define a bezierPathFromSVGPath function that will convert a string of path data into an UIBezierPath. Our scanner is set up to skip commas and whitespace while scanning for values:

func bezierPathFromSVGPath(str: String) -> UIBezierPath {
    let scanner = NSScanner(string: str)

    // skip commas and whitespace
    let skipChars = NSMutableCharacterSet(charactersInString: ",")
    skipChars.formUnionWithCharacterSet(NSCharacterSet.whitespaceAndNewlineCharacterSet())
    scanner.charactersToBeSkipped = skipChars

    // the resulting bezier path
    var path = UIBezierPath()
- (UIBezierPath *)bezierPathFromSVGPath:(NSString *)str {
    NSScanner *scanner = [NSScanner scannerWithString:str];

    // skip commas and whitespace
    NSMutableCharacterSet *skipChars = [NSMutableCharacterSet characterSetWithCharactersInString:@","];
    [skipChars formUnionWithCharacterSet:[NSCharacterSet whitespaceAndNewlineCharacterSet]];
    scanner.charactersToBeSkipped = skipChars;

    // the resulting bezier path
    UIBezierPath *path = [UIBezierPath bezierPath];

With the setup out of the way, it’s time to start scanning. We start by scanning for a string made up of characters in the allowed set of instructions:

    // instructions code can be upper- or lower-case
    let instructionSet = NSCharacterSet(charactersInString: "MCSQTAmcsqta")
    var instruction: NSString?

    // scan for an instruction code
    while scanner.scanCharactersFromSet(instructionSet, intoString: &instruction) {
    // instructions codes can be upper- or lower-case
    NSCharacterSet *instructionSet = [NSCharacterSet characterSetWithCharactersInString:@"MCSQTAmcsqta"];
    NSString *instruction;

    // scan for an instruction code
    while ([scanner scanCharactersFromSet:instructionSet intoString:&instruction]) {

The next section scans for two Double values in a row, converts them to a CGPoint, and then ultimately adds the correct step to the bezier path:

        var x = 0.0, y = 0.0
        var points: [CGPoint] = []

        // scan for pairs of Double, adding them as CGPoints to the points array
        while scanner.scanDouble(&x) && scanner.scanDouble(&y) {
            points.append(CGPoint(x: x, y: y))
        }

        // new point for bezier path
        switch instruction ?? "" {
        case "M":
            path.moveToPoint(points[0])
        case "C":
            path.addCurveToPoint(points[2], controlPoint1: points[0], controlPoint2: points[1])
        case "c":
            path.addCurveToPoint(path.currentPoint.offset(points[2]),
                    controlPoint1: path.currentPoint.offset(points[0]),
                    controlPoint2: path.currentPoint.offset(points[1]))
        default:
            break
        }
    }

    return path
}
        double x, y;
        NSMutableArray *points = [NSMutableArray array];

        // scan for pairs of Double, adding them as CGPoints to the points array
        while ([scanner scanDouble:&x] && [scanner scanDouble:&y]) {
            [points addObject:[NSValue valueWithCGPoint:CGPointMake(x, y)]];
        }

        // new point in path
        if ([instruction isEqualToString:@"M"]) {
            [path moveToPoint:[points[0] CGPointValue]];
        } else if ([instruction isEqualToString:@"C"]) {
            [path addCurveToPoint:[points[2] CGPointValue]
                    controlPoint1:[points[0] CGPointValue]
                    controlPoint2:[points[1] CGPointValue]];
        } else if ([instruction isEqualToString:@"c"]) {
            CGPoint newPoint = offsetPoint(path.currentPoint, [points[2] CGPointValue]);
            CGPoint control1 = offsetPoint(path.currentPoint, [points[0] CGPointValue]);
            CGPoint control2 = offsetPoint(path.currentPoint, [points[1] CGPointValue]);

            [path addCurveToPoint:newPoint
                    controlPoint1:control1
                    controlPoint2:control2];
        }
    }

    [path applyTransform:CGAffineTransformMakeScale(1, -1)];
    return path;
}

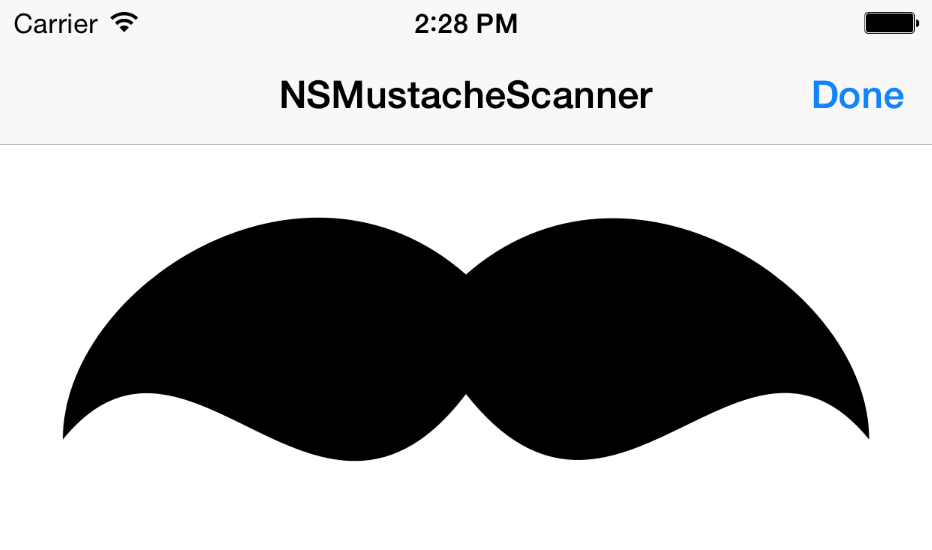

Lo and behold, the result:

NSMustacheScanner

The required flipping, resizing, waxing, and twirling are left as an exercise for the reader.


Swift-Friendly Scanning

As a last note, working with NSScanner in Swift can feel almost silly. Really, NSScanner, I need to pass in a pointer just so you can return a Bool? I can’t use optionals, which are pretty much designed for this exact purpose? Really?

With a simple extension converting the built-in methods to ones returning optional values, scanning becomes far more in sync with Swift’s idiom. Our path data scanning example can now use optional binding instead of inout variables for a cleaner, easier-to-read implementation:

// look for an instruction code
while let instruction = scanner.scanCharactersFromSet(instructionSet) {
   var points: [CGPoint] = []

   // scan for pairs of Double, adding them as CGPoints to the points array
   while let x = scanner.scanDouble(), y = scanner.scanDouble() {
       points.append(CGPoint(x: x, y: y))
   }

   // new point for bezier path
   switch instruction {
       // ...
   }
}

You’ve gotta have the right tools for every job. NSScanner can be the shiny tool to reach for when it’s time to parse a user’s input or a web service’s data. Being able to distinguish which tools are right for which tasks helps us on our way to creating clear and accurate code.
